您的位置:首頁 > 電線電纜 > 工程電纜

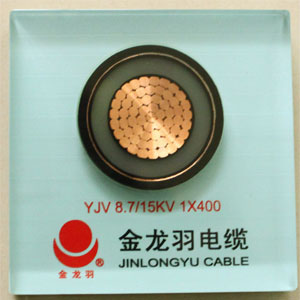

YJV8.7/15KW 1X400
YJV8.7/15KW 1X400

上一篇：額定電壓0.6/1kV~ 3.6/6kV變頻電纜下一篇：YJV8.7/15KW 1X500

詳情說明

用途/Application：本產品適用于額定電壓300/500V及以下電站、礦山、冶金、石化等部門的檢測和控制用計算機系統或自動化控制裝置以及一般工業計算機裝置上，傳輸微弱模擬信號和數字信號，具有較高防靜電、抗電磁干擾效果。

This product is designed for

detecting and control computer

system or automated control system

to transmit weak analogue and digital

signals at rated voltage of 300/500V

and below in power plant,mine,metallurgical

industry, petrochemistry and etc.

It features higher immunities

to static electricity and electromagnetic interference.

型號及名稱/Model and Description

DJYPV(DJYJPV)	銅芯聚乙烯（或交聯聚乙烯）絕緣聚氯乙烯護套銅絲分相屏蔽計算機電纜 Copper core PE(orXLPE)insulated, PVC sheathed and copper-mesh individually screened computer cable
DJYVP(DJYJVP)	銅芯聚乙烯（或交聯聚乙烯）絕緣聚氯乙烯護套銅絲總屏蔽計算機電纜 Copper core PE(orXLPE)insulated, PVC sheathed copper-mesh collectively screened computer cable
DJYPVP(DJYJPVP)	銅芯聚乙烯（或交聯聚乙烯）絕緣聚氯乙烯護套銅絲分相和總屏蔽計算機電纜 Copper core PE(or XLPE)insulated, PVC sheathed, copper-mesh individually and collectivety screened computer cable
DJYVP2 (DJYJVP2)	銅芯聚乙烯（或交聯聚乙烯）絕緣聚氯乙烯護套銅帶總屏蔽計算機電纜 Copper core PE(orXLPE)insulated, PVC sheathed and copper-tape collectivety screened computer cable
DJYP2V(DJYJP2V)	銅芯聚乙烯（或交聯聚乙烯）絕緣聚氯乙烯護套銅帶分相屏蔽計算機電纜 Copper core PE(or XLPE)insulated, PVC sheathed, copper-tape individually screened computer cable
DJYP2VP2 (DJYJP2VP2)	銅芯聚乙烯（或交聯聚乙烯）絕緣聚氯乙烯護套銅帶分相和總屏蔽計算機電纜 Copper core PE(or XLPE)insulated, PVC sheathed, copper-tape individually and collectivety screened computer cable
DJYVP3 (DJYJVP3)	銅芯聚乙烯（或交聯聚乙烯）絕緣聚氯乙烯護套鋁塑復合膜總屏蔽計算機電纜 Copper core PE(orXLPE)insulated, PVC sheathed and aluminum-plastic -laminated film collectivety screened computer cable
DJYP3 V(DJYJP3 V)	銅芯聚乙烯（或交聯聚乙烯）絕緣聚氯乙烯護套鋁塑復合膜分相屏蔽計算機電纜 Copper core PE(or XLPE)insulated, PVC sheathed, aluminum-plastic-laminated film individually screened computer cable
DJYP3 VP3 (DJYJP3 VP3)	銅芯聚乙烯（或交聯聚乙烯）絕緣聚氯乙烯護套鋁塑復合膜分相和總屏蔽計算機電纜 Copper core PE(or XLPE)insulated, PVC sheathed, aluminum-plastic-laminated film individually and collectivety screened computer cable

注：（Notes：）

1、如需鎧裝型計算機電纜加代號“22”

，如DJYVP-22。

For armoured computer cable, add “22” after

the model number, eg, DJYVP-22.

2、如需阻燃型計算機電纜加代號“ZA(ZB、

ZC)”，如ZA-DJYVP。

For flam retardant computer cable, add “ZA(ZB、

ZC)”before the model number,eg, ZA-DJYVP.

3、如需耐火型計算機電纜加代號“N”，

如N-DJYVP。

For fire-resisting computer cable, add “N” before

the model number,eg, N-DJYVP.

采用標準/Standards Applied：

本產品采用標準TICW/06-2009/GB/T 19666-2005。

The product according to the National standared TICW/06-2009 and

Chinese national standard GB/T 19666-2005.

本產品選用介電常數小得高壓聚乙烯做絕緣，采用對絞、對屏、

總屏等結構形式，具有介質損耗小，

傳輸信號能力強、抗干擾性能好等特點。

High-presure polyethylene with low dielectric constant is

adopted as insulating compound,

and pair twisting, pair screening(pair

shield),collective screening(collective shield)structure and

the same like are adopted; as a result, this product features

superior properties such as low dielectric

loss, excellent signal transmitting capability, anti-interference property and etc.

性能特性/Properties and Characteristics:

1、低環境溫度：-15℃ Minimum ambient temperature:-15℃

2、電纜安裝敷設溫度:不低于0℃ Installation temperature for

cable:Not less than -0℃

3、敷設時允許彎曲半徑：鎧裝型電纜不小于電纜外徑的14倍；

其他電纜不小于電纜外徑的10倍 When cable is installed, permitted bendin

g radius shall be as below:Not less than 14 times of the cable
